Product features:

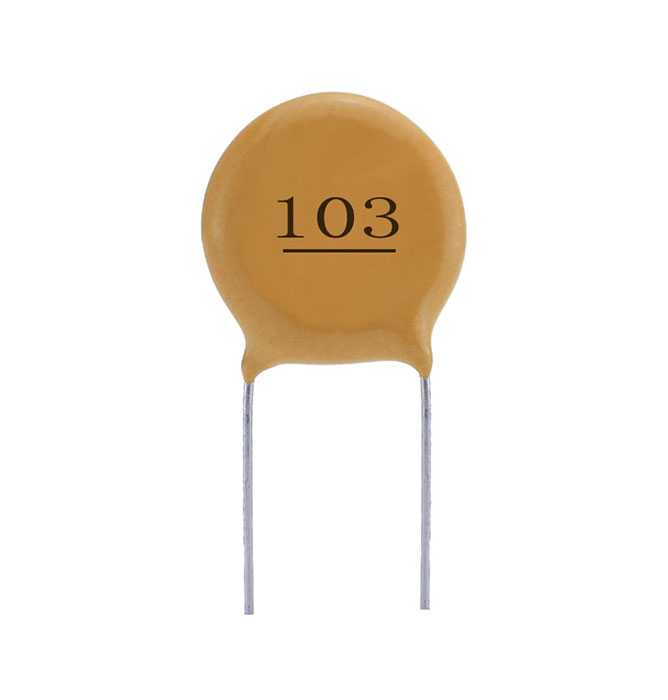

Ceramic Capacitor 103 has multiple temperature levels, low loss and high capacity stability.
PRODUCT DESCRIPTION
Electrical Characteristics:
Ceramic Capacitor Technical requirements reference Standard | GB/T 2693-2001 ; GB/T 5966-1996 |
| Rated Voltage(UR) | 500 / 1K / 2K / 3K / 4K / 5K / 6K / 7K / 8K / 9K / 10K / 15K / 20K / 25K / 30K / 40K /50K VDC |
| Capacitance Range | 1pF to 100000pF |
| Withstand Voltage | <500V,2.5UR ; ≥500V≤3KV,1.5UR+500V ; >3KV,1.2UR |
| Capacitance Tolerance | NPO±0.5pF(D)±5%(J) ; SL±5%(J)±10%(K),Y5P,Y5U±10%(K ) ; Y5U,Y5V±20%(M) |
| Dissipation Factor (tgδ) | C<30pF,Q≥400+20C ; C≥30pF,Q≥1000 ,Y5P,Y5U,Y5V:tgδ≤2.0% ; Y5P:tgδ≤0.5% ; Y5R:tgδ≤0.3% |
| Insulation Resistance(IR) | IR≥10000MΩ,1min,100VDC，IR≥4000MΩ,1min,100VDC |
| Operating Temperature Range | -25℃ to +85℃ |
| Temperature Characteristic | NPO,SL,Y5P,Y5U,Y5V |
| Flame Retardant Epoxy Resin | UL94-V0 |
Product Structure Chart:
Production Process:
Advanced Equipment:
Product Packaging Drawing:
Application Area :
1. Apply to high-voltage bypass and coupling circuits, or the circuit responsible for line scanning in TV.
2. Apply to tuning circuits or those need to compensate for temperature effects.
3. Apply to the circuits requiring large capacity, such as energy storage, memory circuits, etc.
