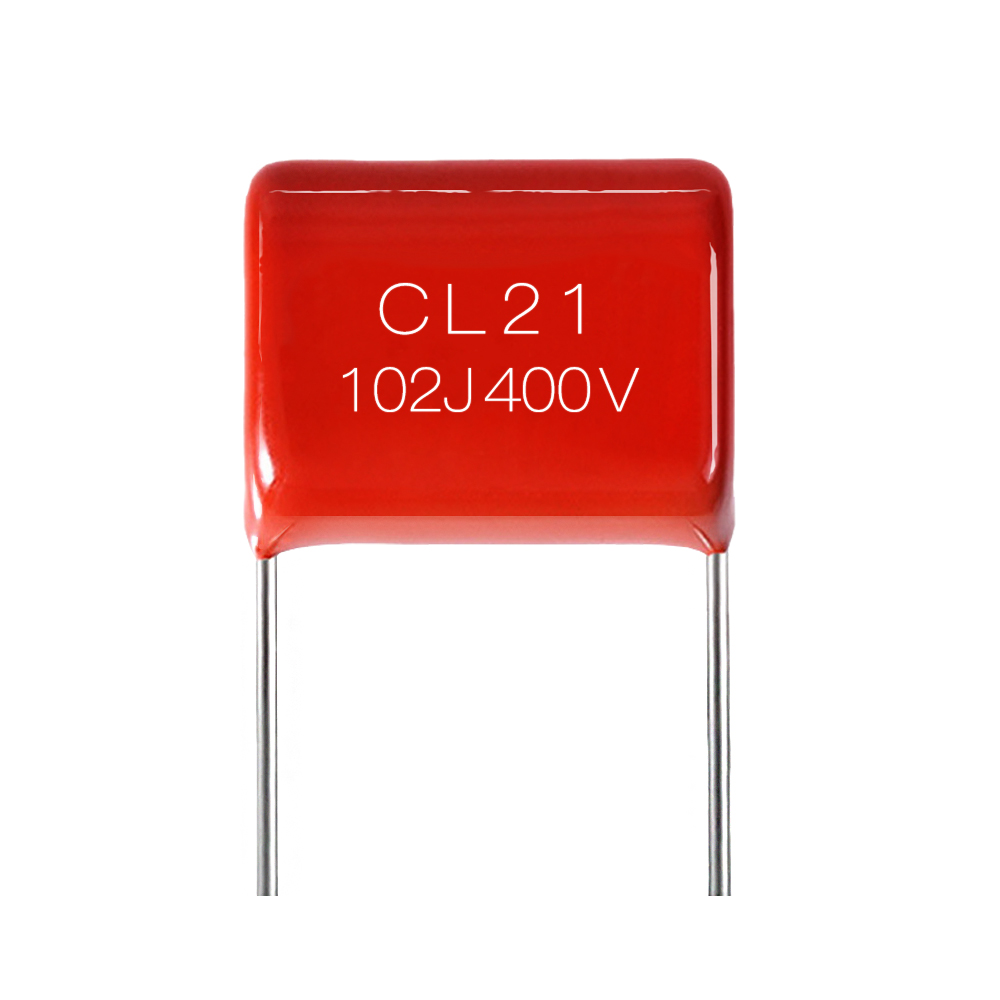

Film Capacitor Automotive 3.3 uF

PRODUCT DESCRIPTION

Electrical Characteristics:

Metallized polyester film, non-inductive structure


Wide capacitance range, small size and light weight


Good self-healing, long life


Flame Retardant epoxy powder encapsulation

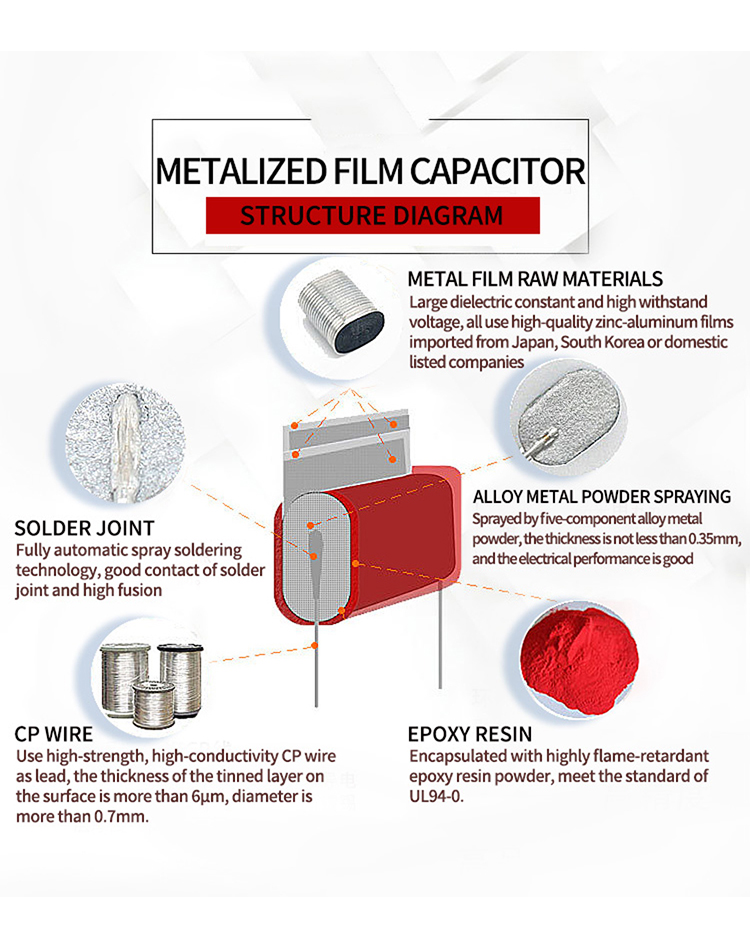

Product Structure Chart:

Film Capacitor Automotive 3.3 uF

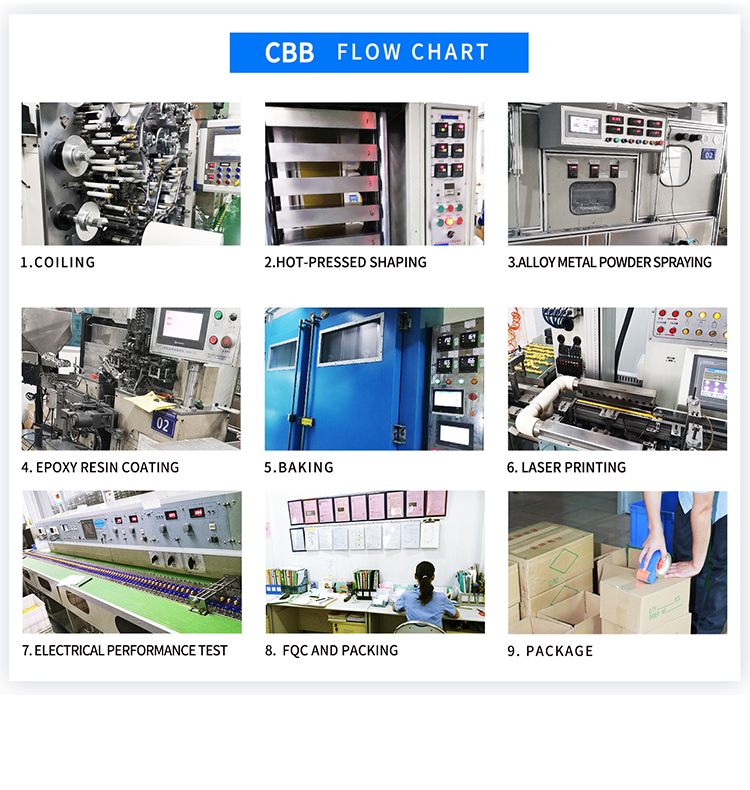

Production Process:

Film Capacitor Automotive 3.3 uF

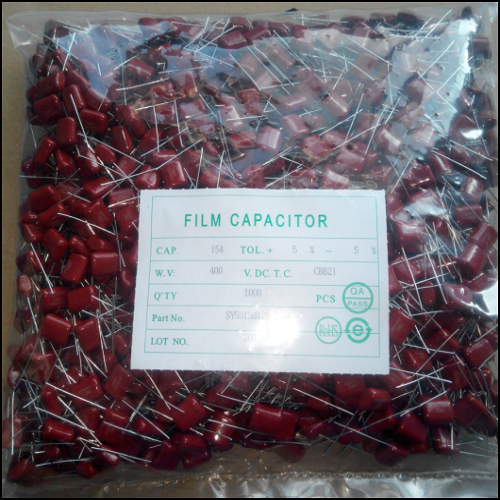

Product Packaging Drawing:

Film Capacitor Automotive 3.3 uF


Plastic bag is the minimum packing. The quantity can be 100, 200, 300, 500 or 1000PCS.


The label of the RoHS includes the product name, specification, quantity, lot No, manufacture date etc.


Film Capacitor Automotive 3.3 uF



Application Area :

DC blocking, bypassing and coupling for DC and VHF class signals


TV, monitor S correction circuit


Certifications :

*FAQ:

Q: How capacitors work?

A: The working principle of the capacitor is that the electric charge will be moved by force in the electric field. When there is a medium between the conductors, the movement of the electric charge will be hindered.

As a result, the charge is accumulated on the conductor, resulting in the accumulation and storage of the charge.



Q: What is the role of capacitor?

A: A capacitor, as the name suggests, is a 'container for charging', a device that holds an electric charge.


Capacitors are one of the most widely used electronic components in electronic equipment, and are widely used in circuit blocking, coupling, bypassing, filtering, tuning loops, energy conversion, control and other aspects.


The Role of Capacitors:


1. Coupling: The capacitor used in the coupling circuit is called the coupling capacitor, which is widely used in the resistance-capacitance coupling amplifier and other capacitive coupling circuits to isolate DC and AC.


2. Filtering: The capacitor used in the filter circuit is called a filter capacitor. This capacitor circuit is used in power supply filtering and various filter circuits. The filter capacitor removes the signal in a certain frequency band from the total signal.


3. Decoupling: The capacitor used in the decoupling circuit is called the decoupling capacitor. This capacitor circuit is used in the DC voltage supply circuit of the multi-stage amplifier. The decoupling capacitor eliminates the harmful low-frequency cross-connection between each stage amplifier.
