Product features:
Use plastic shell (UL94 V-0), flame retardant epoxy resin filled, high pulse strength, high contact reliability
PRODUCT DESCRIPTION
Electrical Characteristics:
| Technical requirements reference Standard | GB/T 14579 (IEC 60384-17) |
| Climatic Category | 55/105/56 |
| Operating Temperature | -55℃~105℃（+85℃~+105℃：decreasing factor1.25% per℃ for UR） |
| Rated Voltage | 160V、250V、400V、630V、1000V、1600V、2000V |
| Capacitance Range | 0.00056μF~15μF |
| Capacitance Tolerance | ±5%(J),±10%(K) |
| Withstand Voltage | 1.5UR,5sec |
| Insulation Resistance(IR) | Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃ |
| Dissipation Factor (tgδ) | 0.1% Max, at 1KHz and 20℃ |

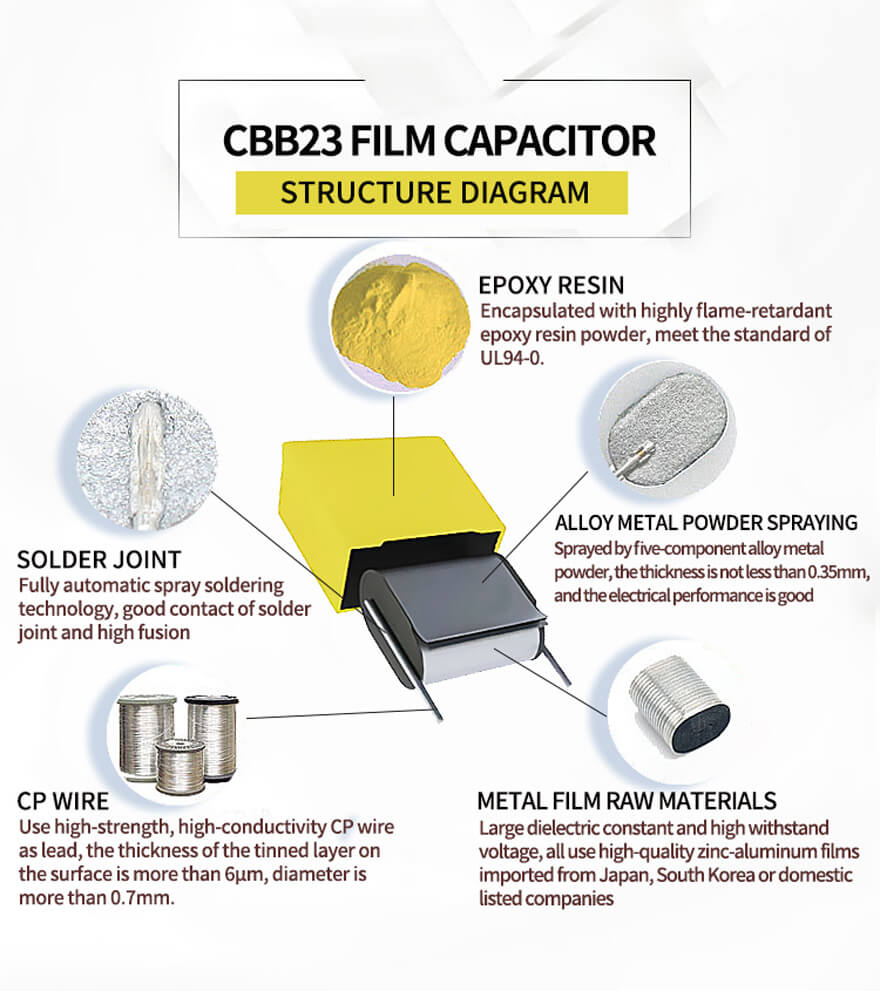

Product Structure Chart:
Production Process:
Advanced Equipment:
Product Packaging Drawing:
Application Area :
Widely used in high frequency, direct current, alternating current, pulse, high frequency coupling, decoupling and oscillation circuits.
