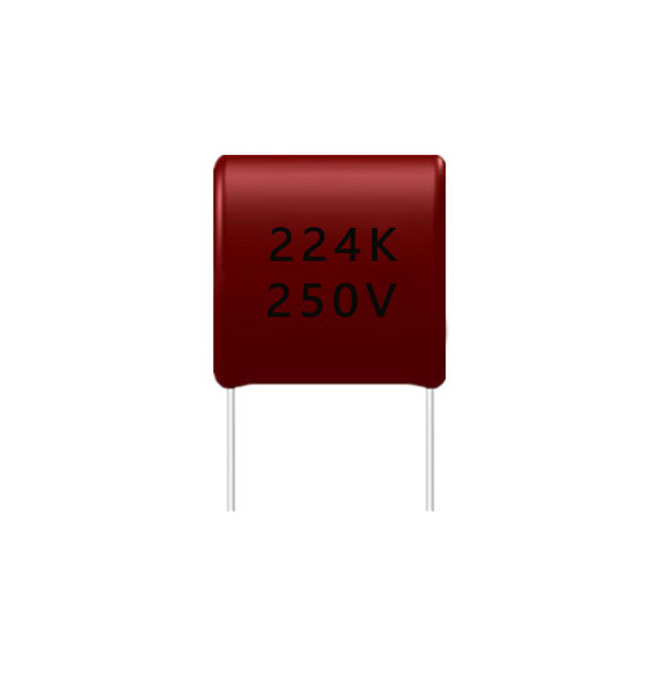

Film Capacitor CL21X 224K 250V

Product features:

1. Metallized polyester film, non-inductive structure, good self-healing.

2. Flame retardant epoxy resin coated, safe and look good.

PRODUCT DESCRIPTION

Electrical Characteristics:

Technical requirements reference StandardGB/T 7332 (IEC 60384-2)
Climatic Category55/105/21
Operating Temperature-55℃~105℃(+85℃~+105℃:decreasing factor1.25% per℃ for UR
Rated Voltage63V,100V,250V
Capacitance Range0.001μF~1μF
Capacitance Tolerance±5%(J) 、±10%(K)
Withstand Voltage1.5UR , 5sec
Insulation Resistance(IR)Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1min
Dissipation Factor (tgδ)1% Max , at 1KHz and 20℃

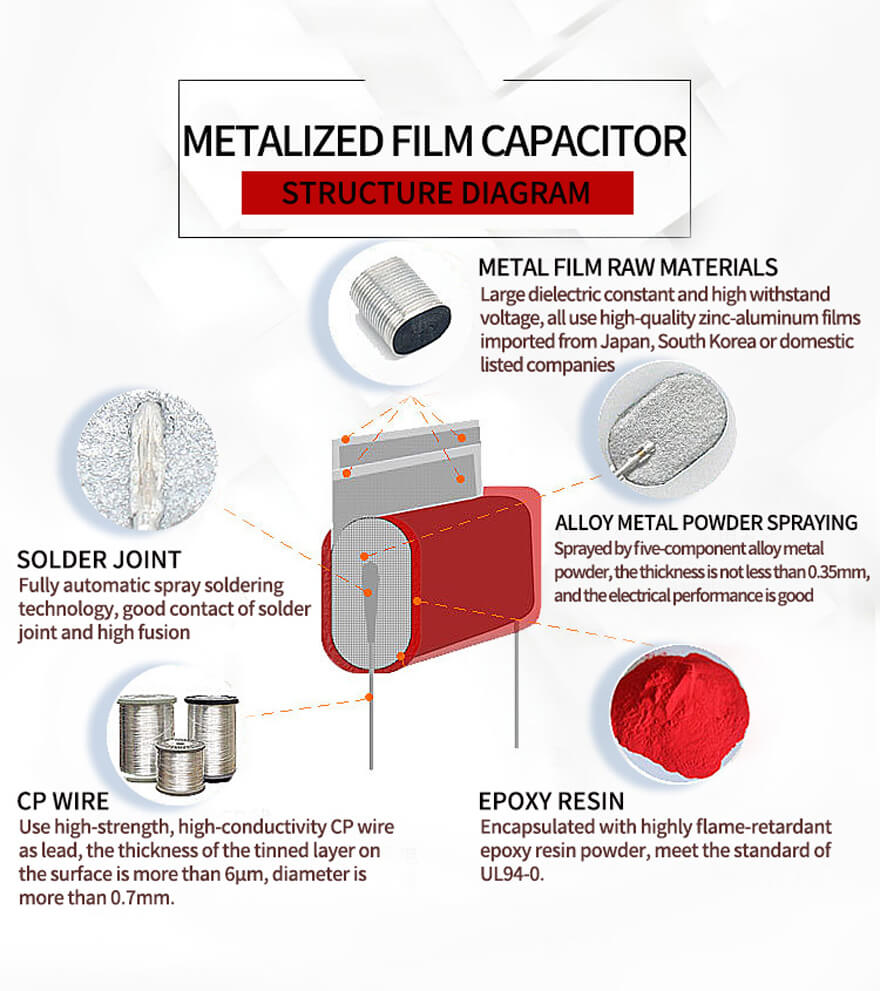

Product Structure Chart:

Production Process:

Product Packaging Drawing:

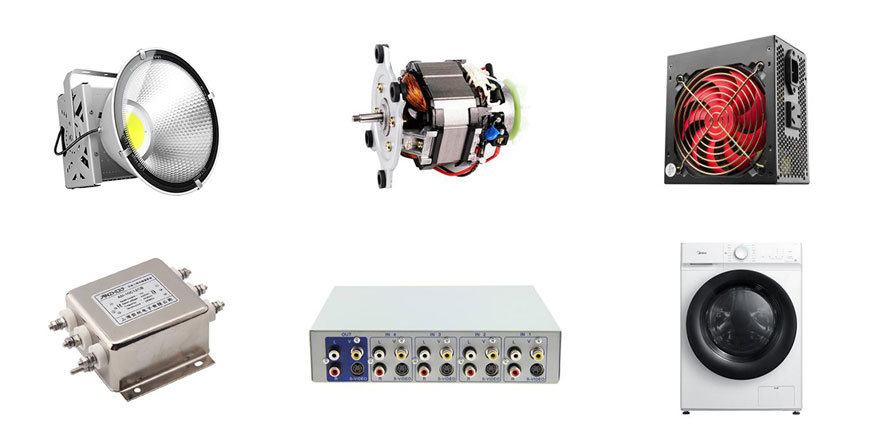

Application Area :

1. Suitable for bypass, DC blocking, coupling, decoupling, filtering, low pulse and other circuits.

2. Suitable for DC filtering of switching power supply, electronic ballast and frequency converter intermediate circuit.
