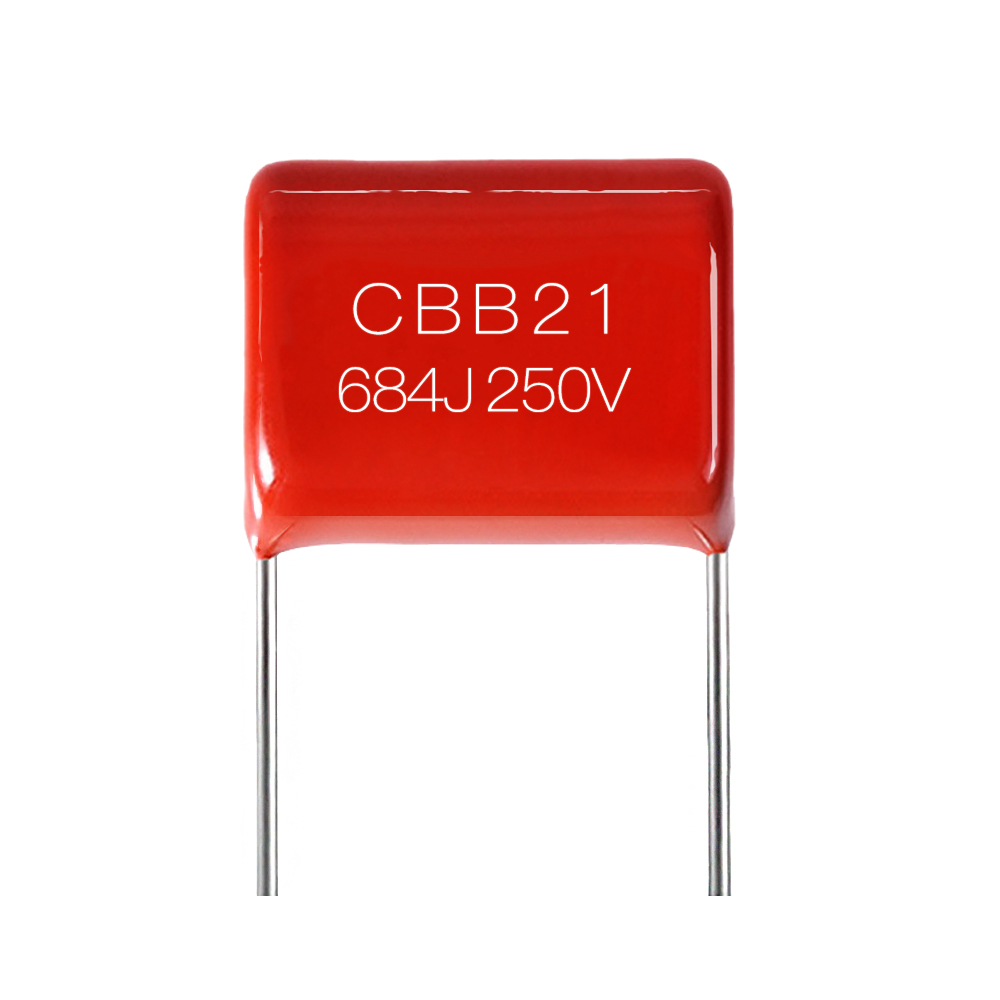

PRODUCT DESCRIPTION
Electrical Characteristics:
Type | Metallized Polyproplene Film, CBB21(MPP) |
Supplier Type | Original manufacturer |
Construction | Plastic case(UL94V-0),Epoxy resin sealing |
Capacitance | 0.01uf ~4.7 uf |
Capacitance Tolerance | 5% |
Package Type | Through Hole |
Rated Voltage | 250V, 400V/450V, 630V, 1000V |
Operating Temperature | -40℃~105℃ |
ESR (Equivalent Series Resistance) | 50Hz/0.1%DF |
Application | LED power supply, electronic ballast |
Customization | Available; also provide samples |
Certificate | CQC,VDE,IEC,ENEC,RoHS |

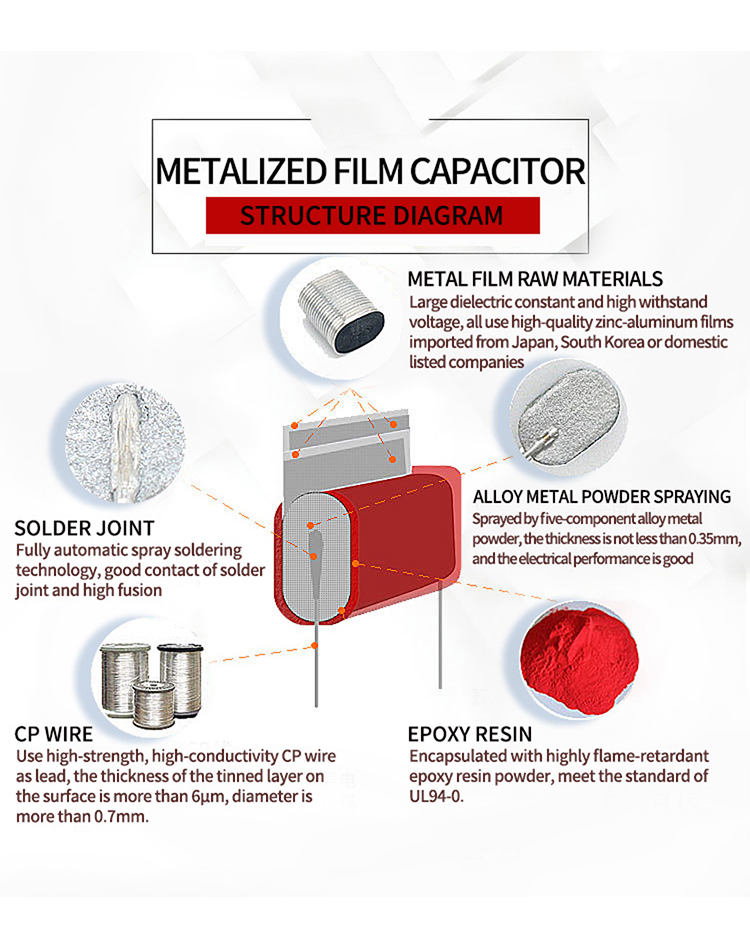

Product Structure Chart:

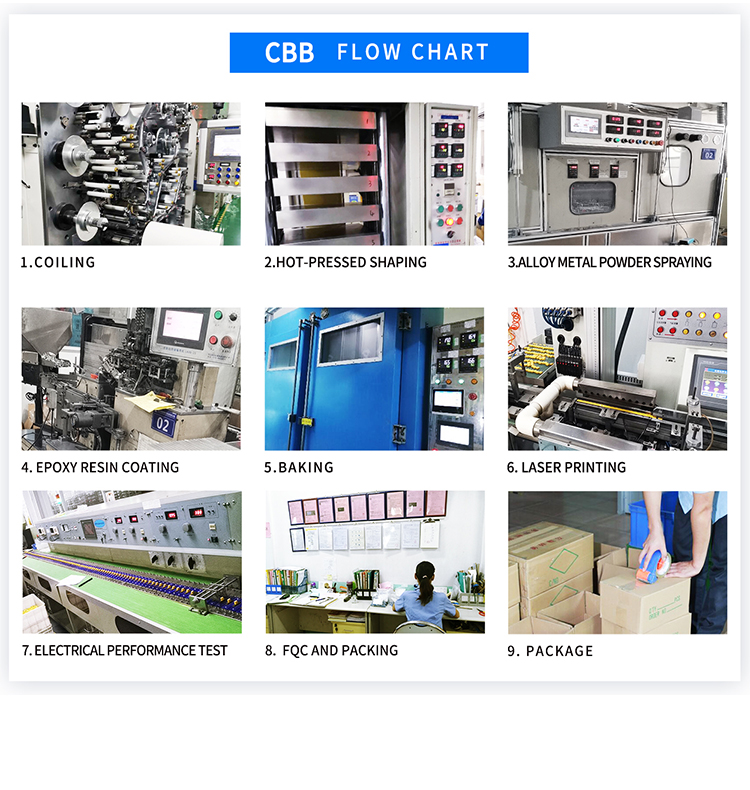

Production Process:
Application Area :
Certifications :
Customer Feedback :
*FAQ:
Q: What is a film capacitor?
A: A film capacitor is a capacitor in which metal foil is used as an electrode, and plastic films such as polyethylene, polypropylene, polystyrene or polycarbonate are overlapped from both ends and then wound into a cylindrical structure.
According to the type of plastic film, there are polyethylene capacitors (also known as Mylar capacitors), polypropylene capacitors (also known as PP capacitors), polystyrene capacitors (also known as PS capacitors) and polycarbonate capacitors.
Q: What do the “K M J” on the film capacitor mean?
A: K.M.J represents capacitance tolerance.
K means the capacitance deviation plus or minus 10%
M means deviation plus or minus 20%
J means the deviation plus or minus 5%
That is to say, for a capacitor whose capacitance is 1000PF, the allowable tolerance is between 1000+1000*10% and 1000-1000*10%.
