Jan. 15, 2025

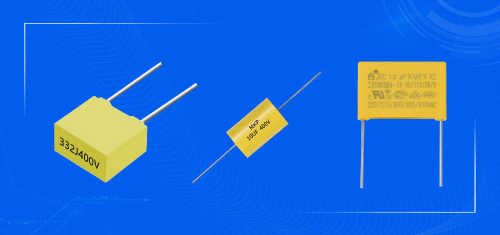

Film capacitors are a crucial type of capacitor in electronic components. They use one or more layers of extremely thin insulating plastic film as the dielectric, with metal layers vapor-deposited on both sides serving as electrodes.
Because of their non-polar nature, high insulation resistance, excellent frequency characteristics, low dielectric loss, superior electrical performance, and stable operating state, film capacitors are widely used in various electronic devices.
The structure of a film capacitor is also unique. Cutting open a film capacitor reveals that its dielectric film is wound into layers. This is known as the winding structure of a film capacitor. Why are film capacitors manufactured in this rolled-up configuration?
Improved Energy Density
From a performance perspective, the winding structure enhances the energy density of film capacitors. Energy density refers to the amount of electrical energy stored per unit volume and is a key performance metric for capacitors.
By adopting a winding design, the internal space of the film capacitor is fully utilized, minimizing excess space within the component and reducing its volume while increasing its surface area. This results in enhanced performance and prolonged service life.
The increased surface area of the film capacitor allows it to store more charge within the same volume, thereby increasing its capacitance and energy density.
Meeting Modern Demands
This design not only meets the demand for miniaturized and high-energy-density components in modern electronic devices but also enables the application of capacitors in high-frequency, high-voltage, and other complex environments.
Enhanced Stability and Reliability
The winding structure also improves the stability and reliability of film capacitors. During manufacturing, the dielectric film and electrode materials are tightly wound together, reducing uneven interfaces that can cause electric field concentration and partial discharge. As a result, film capacitors exhibit more stable and reliable performance.
Dongguan Zhixu Electronics (also JYH HSU, short for JEC) offers a comprehensive range of electronic component models with guaranteed quality and reliable after-sales support. Our products are certified under the ISO9001:2015 quality management system. Welcome to contact us for cooperation.
