Jul. 11, 2023
Electronic devices have become an indispensable part of our daily lives. Smartphones and computers, for example, are important electronic products that we rely on every day. However, when using electronic devices, we sometimes encounter noise and interference. These disturbances not only affect the normal operation of the electronic devices, leading to malfunctions and performance degradation, but also provide a negative user experience.
In addition to noise and interference originating from electronic devices themselves, power supplies also contain various high-frequency noise and interference signals. These noises and interferences can come from voltage fluctuations, transients, harmonics, and other factors in the power grid, as well as radiation, mutual inductance, and electromagnetic interference caused by other electronic devices. They can have negative effects on electronic devices, leading to performance degradation. To eliminate these noises and interferences, filtering is required, and this filtering process is known as power supply filtering.
Power supply filtering can be understood as processing the power supply signal to remove or reduce the noise and interference present in the input power supply. The purpose of power supply filtering is to ensure stable device operation and improve the performance and reliability of electronic devices.

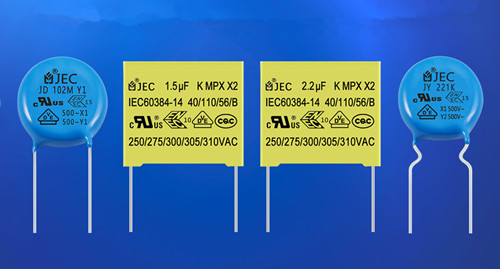

Among electronic components, safety capacitors are suitable for power supply filtering. A safety capacitor is a type of capacitor that possesses safety features. It discharges rapidly when the external power supply is disconnected, eliminating the risk of electric shock upon human touch. In the event of a failure, a safety capacitor does not cause electric shocks or harm to the human body. In addition, safety capacitors also play a role in voltage reduction, power supply electromagnetic interference suppression, and filtering in circuits.
Why is it said that safety capacitors are suitable for power supply filtering? Safety capacitors are capacitors that comply with relevant electrical standards. They have high dielectric strength and electrical performance. The main characteristics of safety capacitors are their small size, large capacitance, and ability to withstand high voltage and current. These features make safety capacitors suitable for use in power supply filtering. Moreover, safety capacitors also have good ability to resist high-frequency noise, effectively removing high-frequency noise interference present in the input power supply.
By connecting safety capacitors in parallel to the power supply input, they can form a low-pass filter that blocks the transmission of high-frequency signals, thereby reducing high-frequency noise interference in the power supply. The capacitance value and electrical parameters of safety capacitors will affect their filtering effect. Generally, safety capacitors with larger capacitance values and higher rated voltages can better filter out noise in the power supply.
Therefore, when designing electronic devices, it is important to choose and use safety capacitors for power supply filtering.
This article is provided by JYHHSU Electronics, an electronic component manufacturer who based its factories in mainland China
