Why Do We Need Parallel Capacitors In Circuits

May. 13, 2024

Principle of Capacitors in Parallel

In a circuit, capacitors in parallel effectively increase the total area of capacitance, thereby enhancing the capacity to store electrical energy. When the circuit stabilizes, due to the continuity of current, the charge on capacitors continuously changes until reaching an equilibrium state. This increased ability of capacitors to store charge contributes to a more stable circuit.



Functions of Capacitors in Parallel



Voltage Smoothing: In a DC power supply, fluctuations in power source voltage or factors like resistance and inductance in the circuit can cause voltage fluctuations. Placing a capacitor in parallel in the output circuit of the power source can smooth out these fluctuations and stabilize the output voltage.



Improving Circuit Stability: In AC circuits, capacitors continuously absorb and release charge, facilitating uninterrupted flow of current, thereby effectively enhancing circuit stability.

Filtering: Capacitors in parallel can act as filters, filtering out higher frequency signals to achieve ideal signal output.

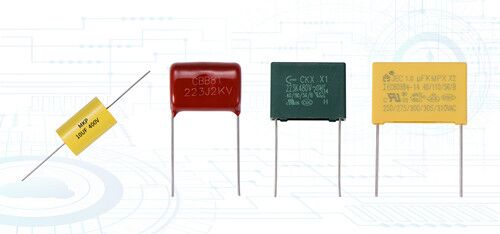

film capacitors JYH HSU.jpg


Applications of Capacitors in Parallel



Parallel connection of a capacitor in a DC power supply can enhance the stability of the power source output voltage and reduce ripple factor.



In audio amplification circuits, paralleling a capacitor can act as a barrier to direct current, preventing the DC component of audio from flowing back to the audio source. Additionally, capacitors in parallel can help in isolating noise.

In AC circuits, parallel capacitors can block DC currents and provide band-pass filtering for AC signals, thus achieving ideal signal output.



In summary, capacitors in parallel play a crucial role in circuits, smoothing voltage, improving circuit stability, and acting as filters. In practical circuit applications, selecting appropriate capacitor parallel schemes based on specific circuit requirements is necessary to meet the demands of the circuit.
