PRODUCT DESCRIPTION
Electrical Characteristics:
Mainly used in anti-interference occasions such as various power supply lines, small high-frequency loss and small internal temperature rise, plastic shell (UL94 V-0), flame-retardant epoxy resin filling.
●Passed the IEC and multi-national safety standard certification
●Simple size, flame retardant epoxy closure
●Compliant with RoHS Directive

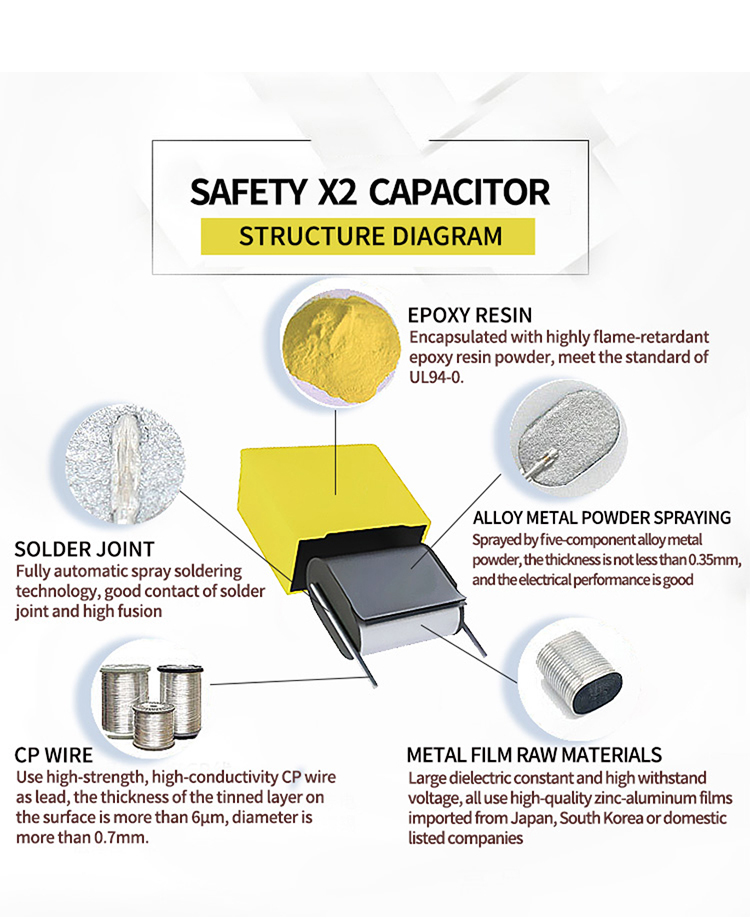

Product Structure Chart:
Application Area :
Suitable for high frequency, DC, AC, coupling, and pulsating circuits across

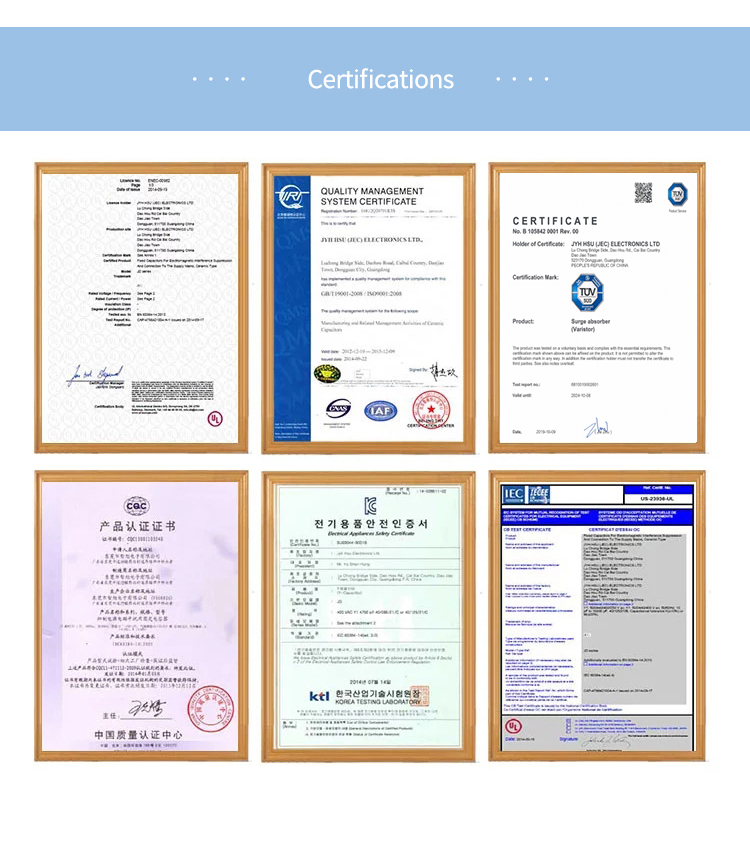

Certifications :
*FAQ:
What does the X2 capacitor do?
1. Suppress the electromagnetic interference of the power supply.
The most common function of the X2 safety capacitor is to suppress the electromagnetic interference of the power supply. It is generally placed at the entrance of the power supply neutral wire and the live wire. In the power supply, it is usually used in conjunction with the safety Y capacitor. The X capacitor is a capacitor connected across the two lines (L-N) of the power line to suppress common mode interference. Y capacitors are capacitors that are respectively connected between the two lines of the power line and the ground (L-E, N-E). Generally, they appear in pairs to suppress differential film interference. If safety capacitors are not used in the power supply, EMC problems will occur when the power supply is certified, so safety capacitors are indispensable.
2. Resistance-capacitance and step-down effect.
In addition to suppressing the electromagnetic interference of the power supply, X2 can also be used as a resistance-capacitance step-down capacitor in series with a 100~250V[**]C power supply in the circuit. The resistance-capacitance step-down circuit is relatively simple and saves money, and is often used in some low-power circuits, such as LED modules, small household appliances control, etc.
Compared with CBB capacitors, X2 capacitors are used in RC buck circuits, and the capacitance attenuation will be significantly smaller, so that the life of RC buck circuits will be longer, so X2 capacitors are also very common in RC buck circuits. .
3. Used for DC filtering.
The X2 safety capacitor can be used in parallel and used as a DC filter.
