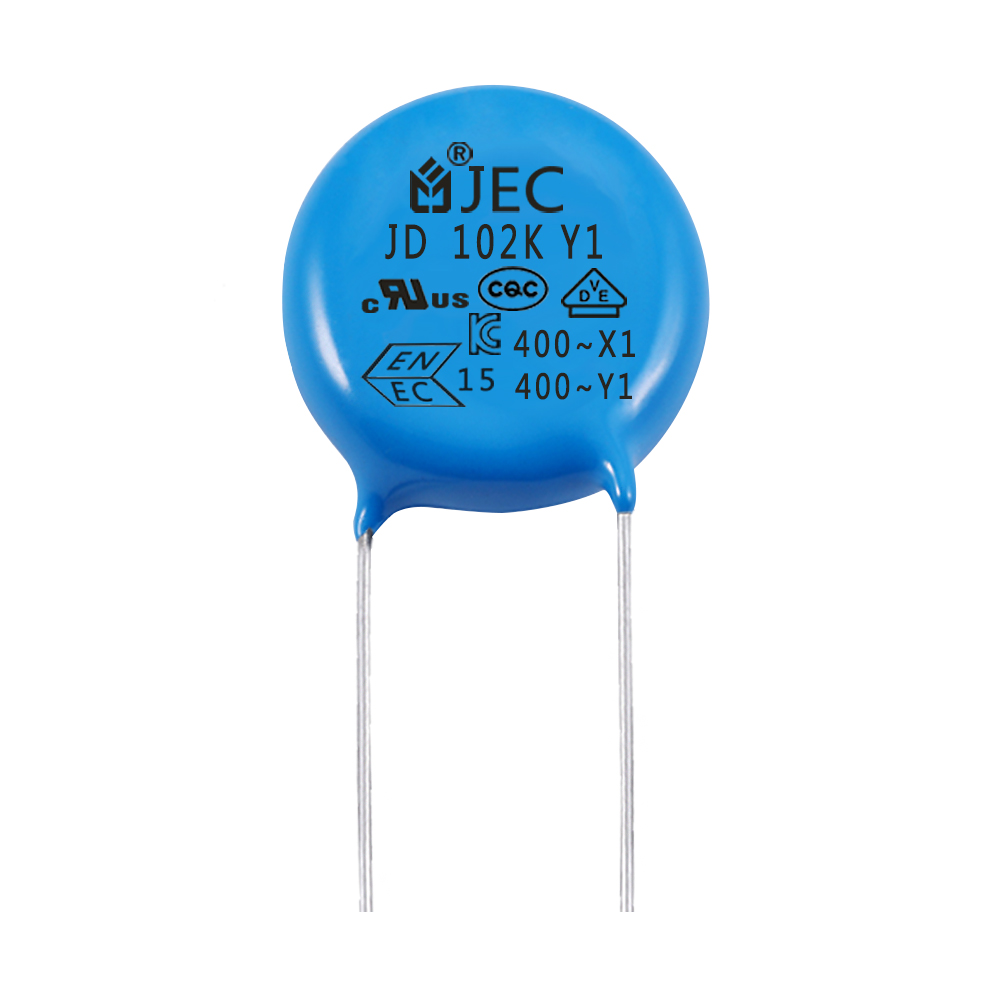

PRODUCT DESCRIPTION
Electrical Characteristics:

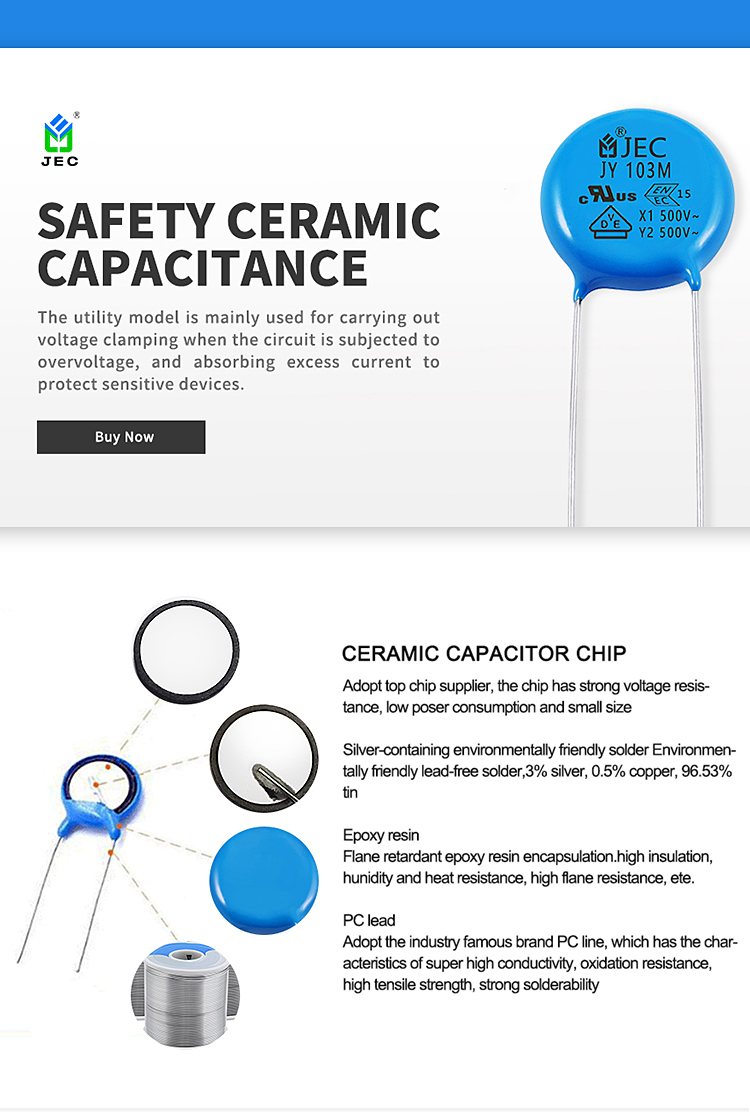

Ceramic dielectric with high dielectric constant
Flame retardant epoxy resin encapsulation
Passed CQC, VDE, ENEC, KTL, IEC-CB, UL, CUL safety certification standards
Compliant with ROHS Directive and REACH Directive
Bromine-free and halogen-free

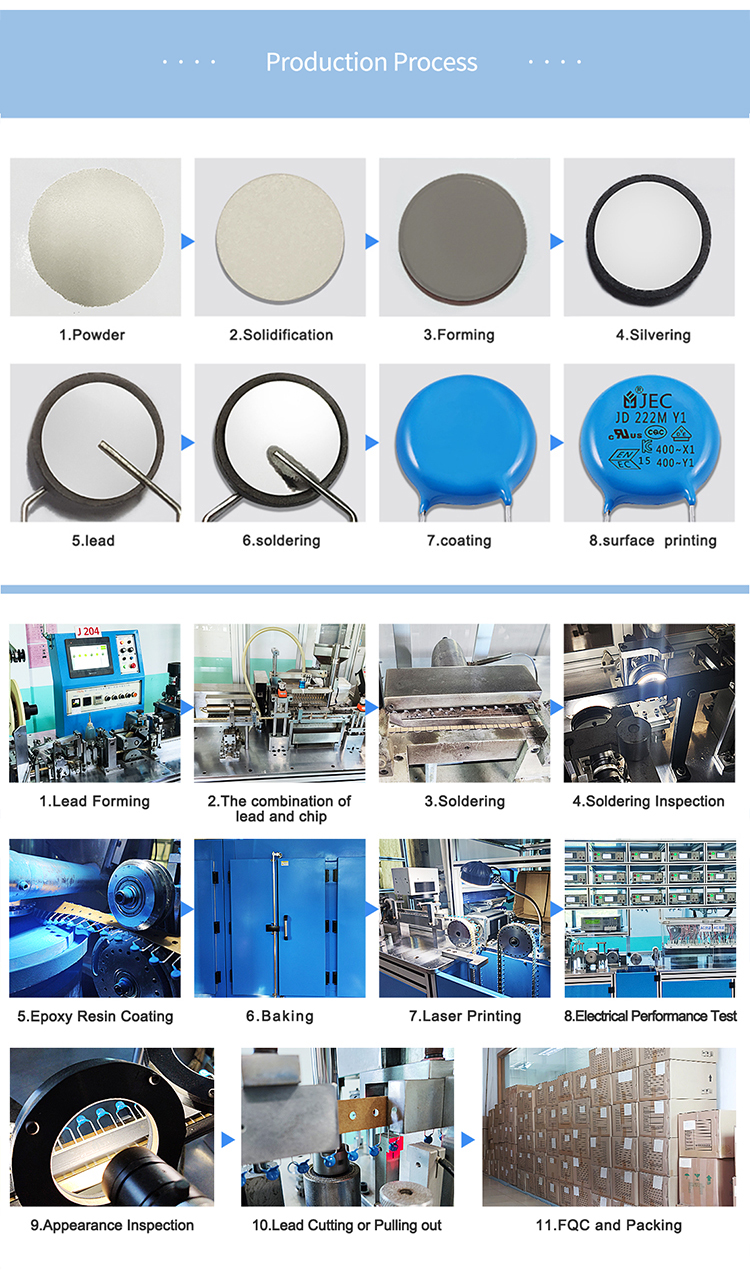

Production Process:
Application Area :
Recommended Application Areas:
Applicable to the noise suppression circuit of the power circuit of electronic equipment
Can be used as antenna coupling jumper and bypass circuit
Certifications :
*FAQ:
What's the differences between Y1 and Y2 capacitor?
Y1 has higher withstand voltage than Y2 capacitor. The two types of insulation are different. Y1 capacitors belong to double insulation or reinforced insulation; Y2 capacitors belong to basic insulation or additional insulation.
What are the factors that affect the capacitance of capacitors?
1. Temperature: Because temperature will affect the dielectric constant, plate size, spacing, etc. of the material
2. Humidity: If the structure of the capacitor is open (such as air variable capacitor), then the humidity will also affect the above parameters
3. Voltage: when a voltage is applied to the capacitor, the distance between the plates may be changed; the distributed capacitance of the voltage semiconductor element may be changed by adding a voltage, which is also the working principle of the capacitor diode.
4. Stress: Similarly, external force may also change the plate size, spacing, etc. Some sensors work based on this principle.
5. Air pressure, dust, etc.: Like the effect of humidity on capacitors, the capacitance of open capacitors is also affected by air pressure, dust and other factors.
6. Others: such as the application of liquid level sensors
