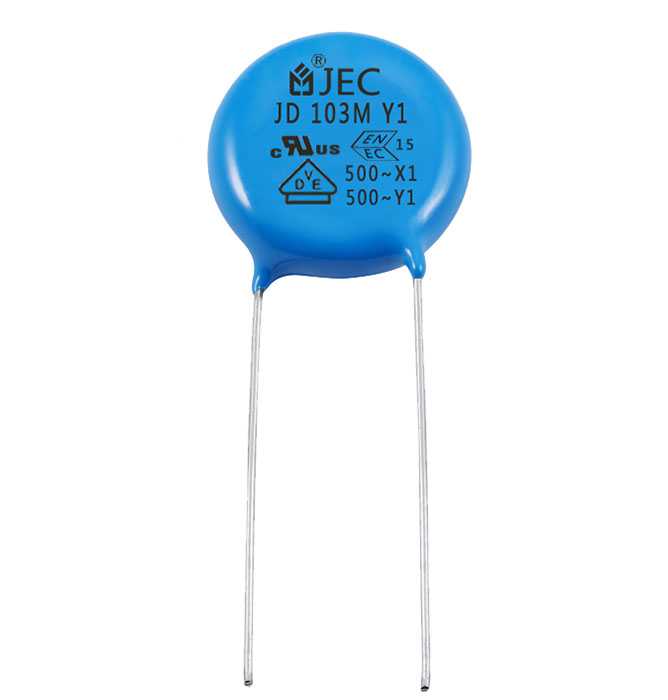

Safety Capacitor 103M 500V

Product features:

Product Features

1. High-k dielectric ceramic dielectric, encapsulated with flame retardant epoxy resin

2. Pass the safety certificates of VDE / ENEC / IEC / UL / CSA / KC / CQC


PRODUCT DESCRIPTION

Electrical Characteristics:

Technical requirements reference StandardIEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
Certification markVDE / ENEC / IEC / UL / CSA / KC / CQC
Class ;  Rated Voltage(UR)X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
Capacitance Range10pF to 10000pF
Withstand voltage4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
Capacitance ToleranceY5P±10%(K ) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
Dissipation Factor (tgδ)Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
Insulation Resistance(IR)IR≥10000MΩ,1min,100VDC
Operating Temperature-40℃ to +85℃ ; -40℃ to +125℃
Temperature CharacteristicY5P,Y5U,Y5V
Flame Retardant Epoxy ResinUL94-V0

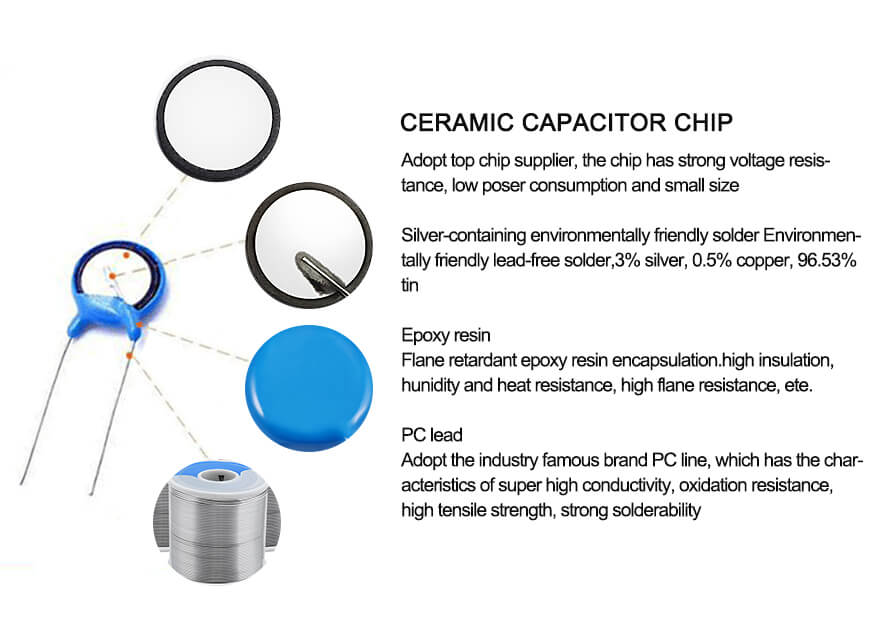

Product Structure Chart:

103M 500V

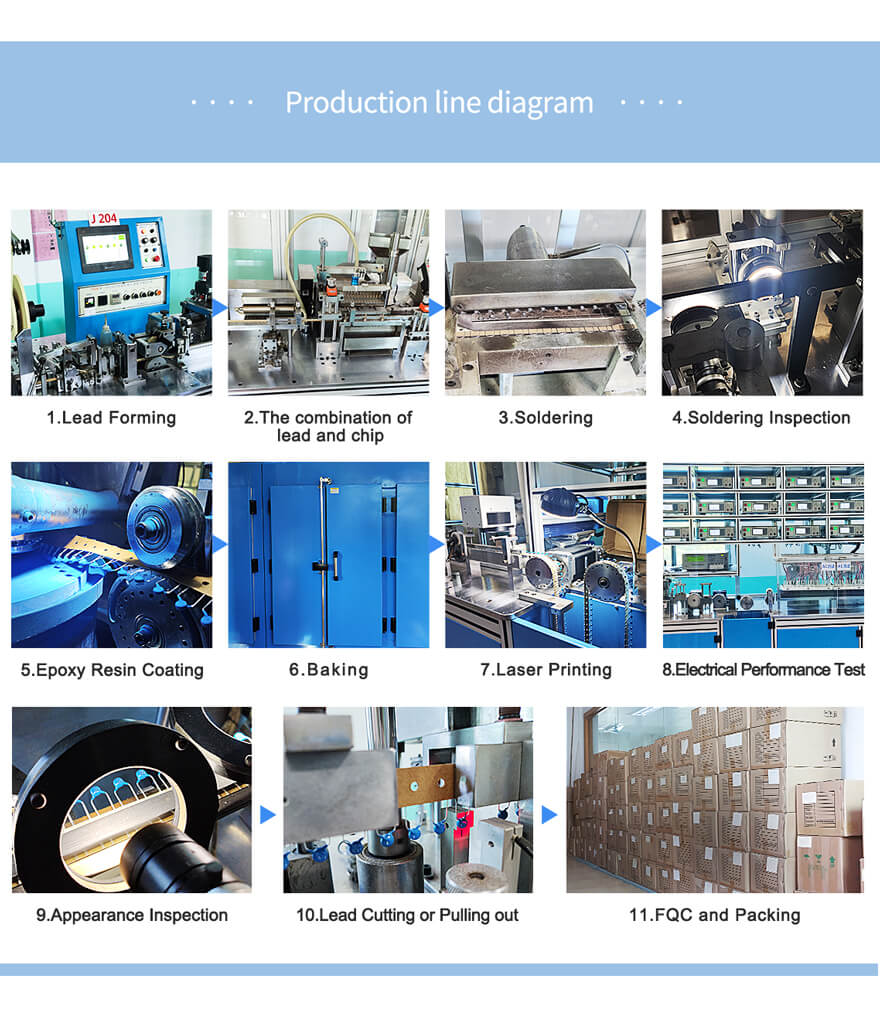

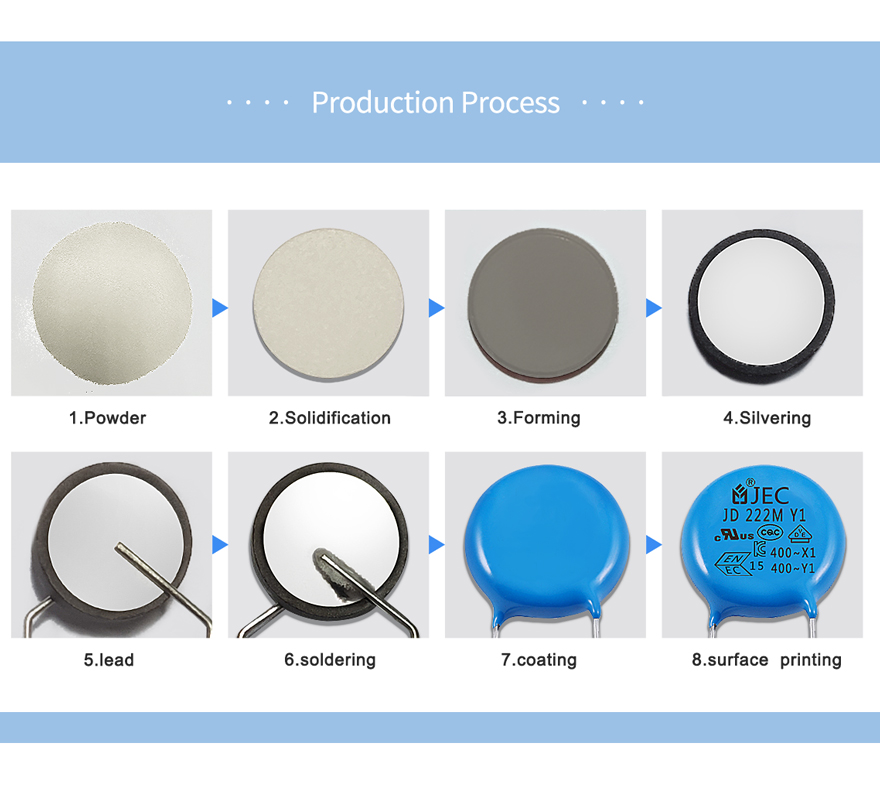

Production Process:

331K 400V

331K 400V

Application Area :

1.Apply to power circuits of electronic equipment include noise suppression circuit, antenna coupling and bypass circuit.


2.Apply to all kinds of small household appliances control boards, power filters, high-frequency AC loads, switching power supplies, electronic ballasts, LED energy-saving lamps, etc.


331K 400V

*FAQ:

1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.


2. The storage temperature and the relative humidity should not be too low or too high.
