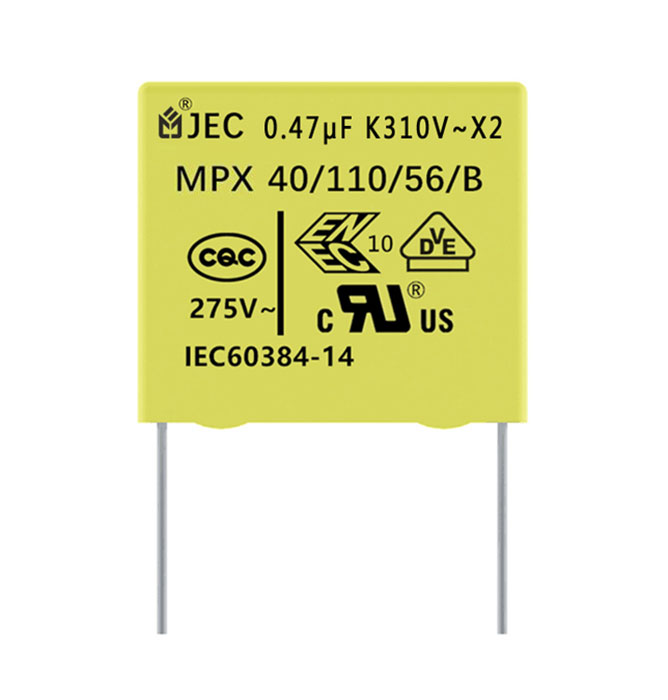

Product features:
Product Features
1. High reliability to prevent active or passive flammability, strong self-healing, high voltage strength, low capacity fading, low impedance and strong interference suppression.
2. The operating temperature can reach more than 110 ° C. We could also provide halogen-free capacitors which meet the RoHS directive 2011/65 / EC.
PRODUCT DESCRIPTION
Electrical Characteristics:
Technical requirements reference Standard | GB/T 6343 (IEC 60384-11) |
Climate and flame retardant grade | 40/110/56/B |
Operation Temperature Range | -40℃~110℃ |
Rated Voltage | 310VAC at 50/60Hz |
Capacitance Range | 0.001μF~2.2μF |
Capacitance Tolerance | ±5%(J),±10%(K),±20%(M) |
Withstand voltage | T-T 1200VDC at 60 sec ; T-C 2110VAC at 60 sec |
Insulation Resistance | Cn≤0.33μF,IR≥15000MΩ ; Cn>0.33μF, RCn≥5000s at 100V,20℃,1minFor 60sec / 25℃For 60sec / 25℃ |
Dissipation Factor | 0.1% Max, at 1KHz and 20℃ |
Product Structure Chart:
Production Process:
Application Area :
Connected between the power insulator and the conductor (meeting the electromagnetic compatibility standard), and apply to the circuits including high frequency, DC, AC, coupling, jump pulse, etc.
